Our Products

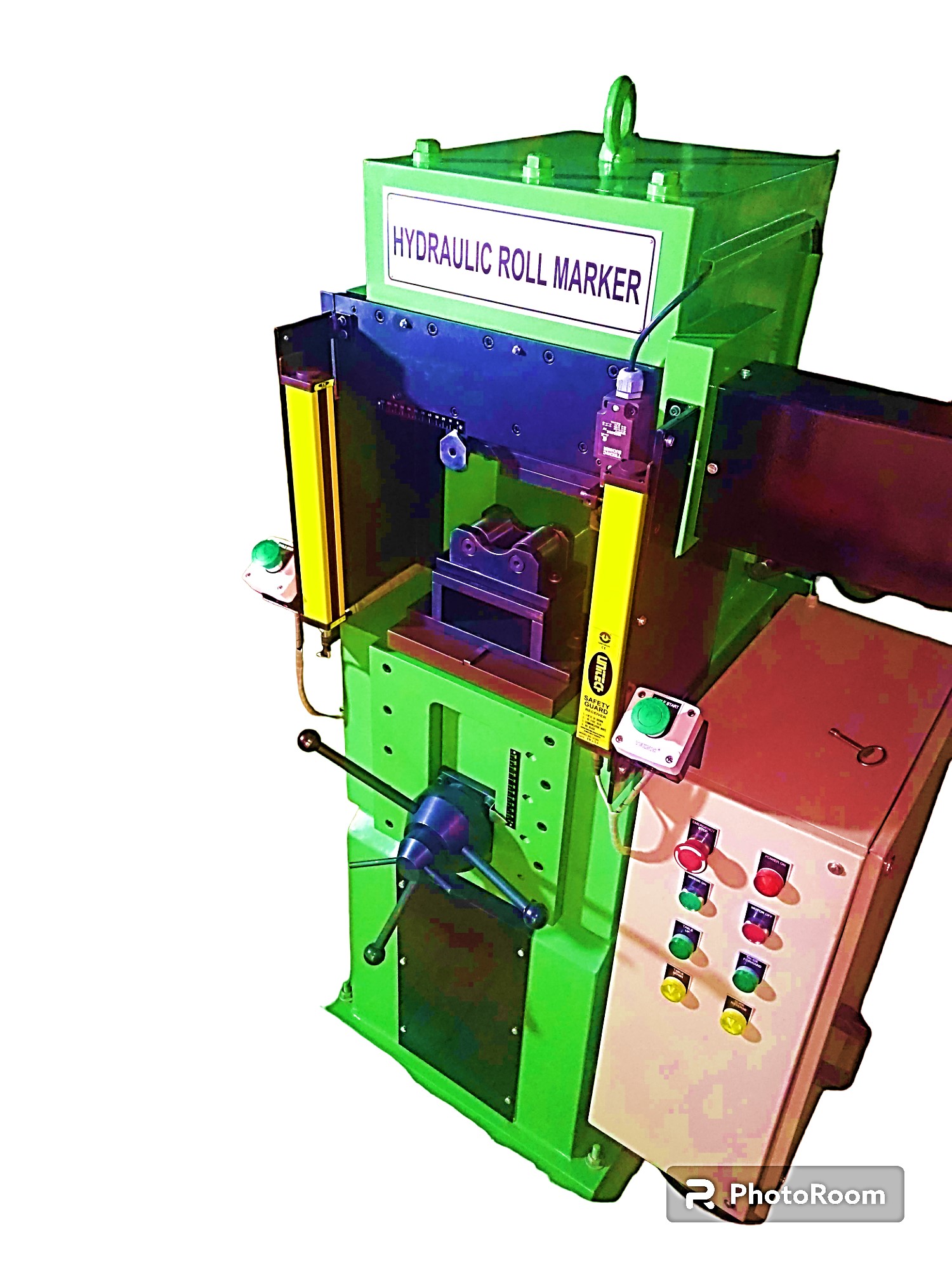

RH 200 HYDRAULIC ROLL MARKING MACHINE

Specification	Details
Marking Capacity	4 Lines of 8 mm Characters
Mild Steel Capacity	6 Lines of 4 mm Characters
Maximum Capacity	8 Lines of 3 mm Characters
Table Pressure	1 Ton – 4 Ton
Daylight	300 mm (Customizable up to 500 mm)
Output	Up to 600 Components/Hour*

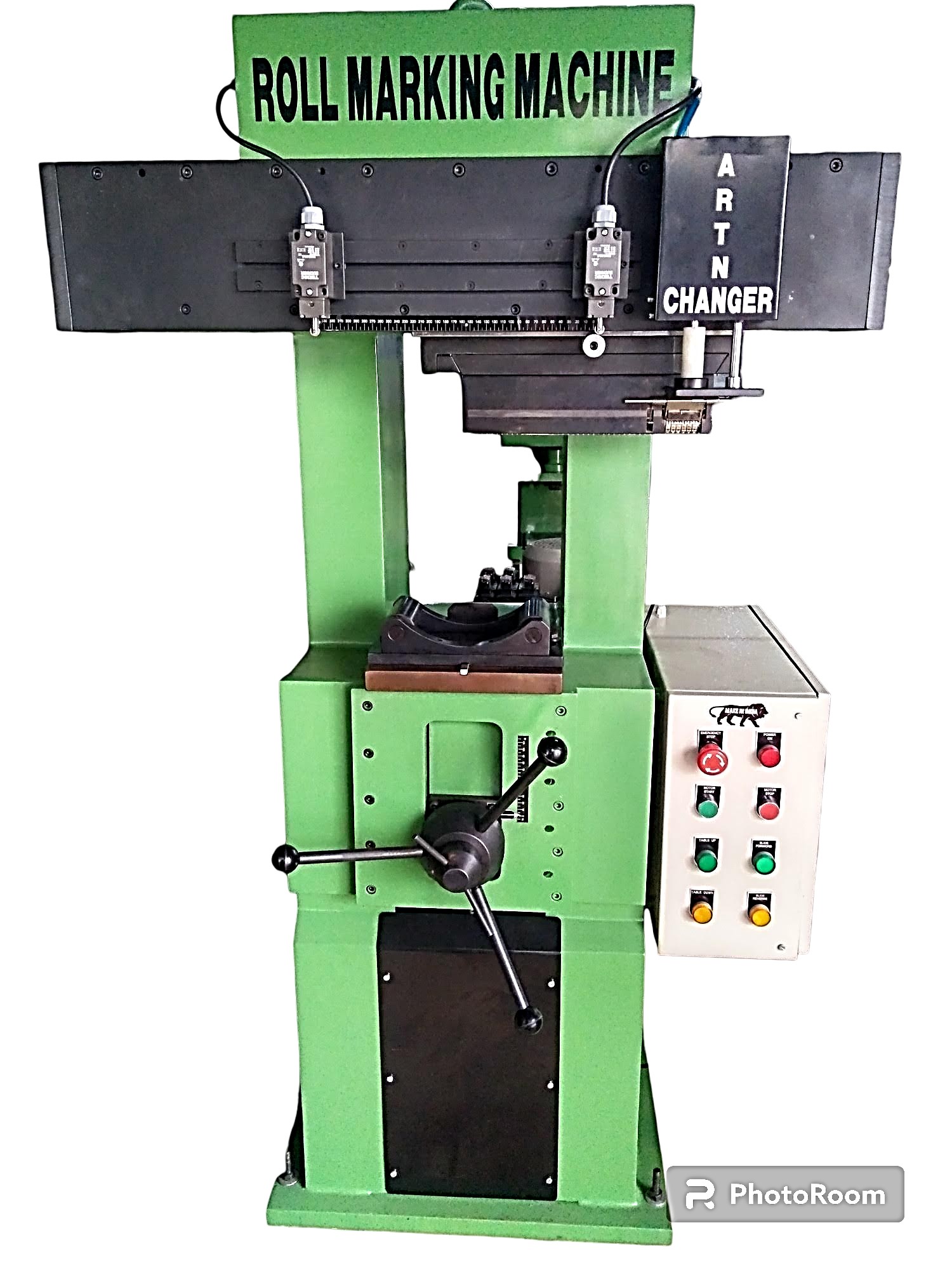

RH 500 HYDRAULIC ROLL MARKING MACHINE

Specification	Details
Marking Capacity	7 Lines of 10 mm Characters
Marking Capacity (Mild Steel)	8 Lines of 8 mm Characters
Maximum Marking Capacity	10 Lines of 6 mm Characters
Table Pressure	1 Ton – 6 Ton
Daylight	300 mm (Customizable up to 500 mm)
Throat	150 mm
Die Slide Stroke	200 mm (Customizable up to 330 mm)
Table Rise	10 mm (Hydraulic), 110 mm (Manual)
Table Size	200 × 250 mm
Floor Area	1500 × 2000 mm
Machine Height	1500 mm
Net Weight	1100 kg
Motor	5 HP, 1500 RPM, 440 V, 3-Phase
Pump	10 LPM
Power Pack Capacity	125 Litres
Component Diameter Range	30 mm – 150 mm (Customizable up to 400 mm)
Output	Up to 500 Components per Hour*
Marking Cycle Time	5–6 Seconds

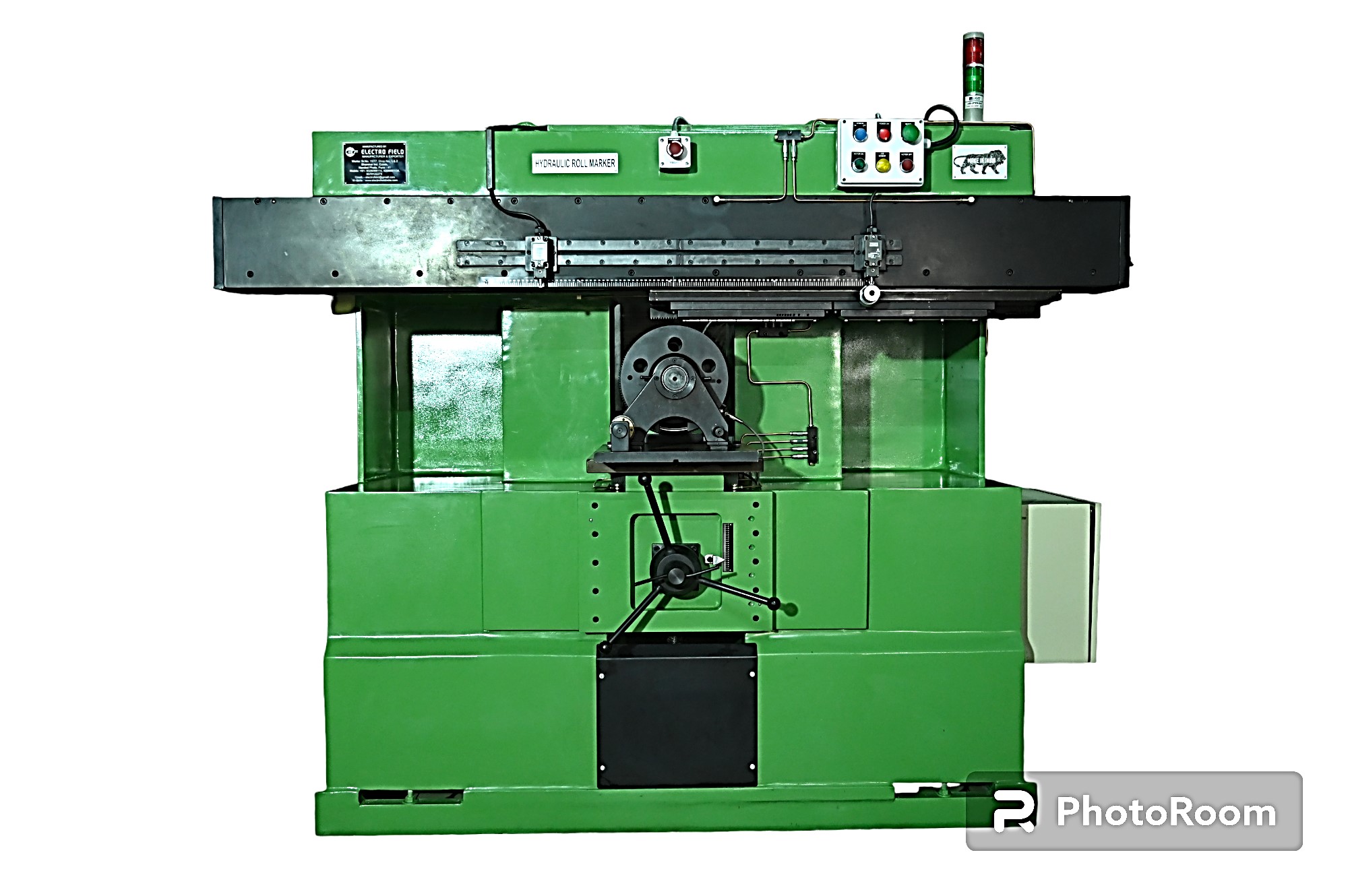

RH 900 HYDRAULIC ROLL MARKING MACHINE

Specification	Details
Marking Capacity	7 Lines of 10 mm Characters
On Mild Steel	8 Lines of 8 mm Characters
Maximum Capacity	10 Lines of 6 mm Characters
Table Pressure	1 Ton – 6 Ton
Daylight	400 mm (Customizable up to 500 mm)
Throat	300 mm
Die Slide Stroke	900 mm
Table Rise	10 mm (Hydraulic), 110 mm (Manual)
Table Size	300 mm × 280 mm
Floor Area	3000 mm × 3000 mm
Machine Height	1500 mm
Net Weight	2900 kg
Motor	5 HP, 1500 RPM, 440 V, 3 Phase
Pump	12 LPM
Power Pack	150 Litres
Component Diameter Range	50 mm – 270 mm (Customizable up to 300 mm)
Output	Up to 300 Components/Hour*
Marking Cycle Time	25–30 Seconds

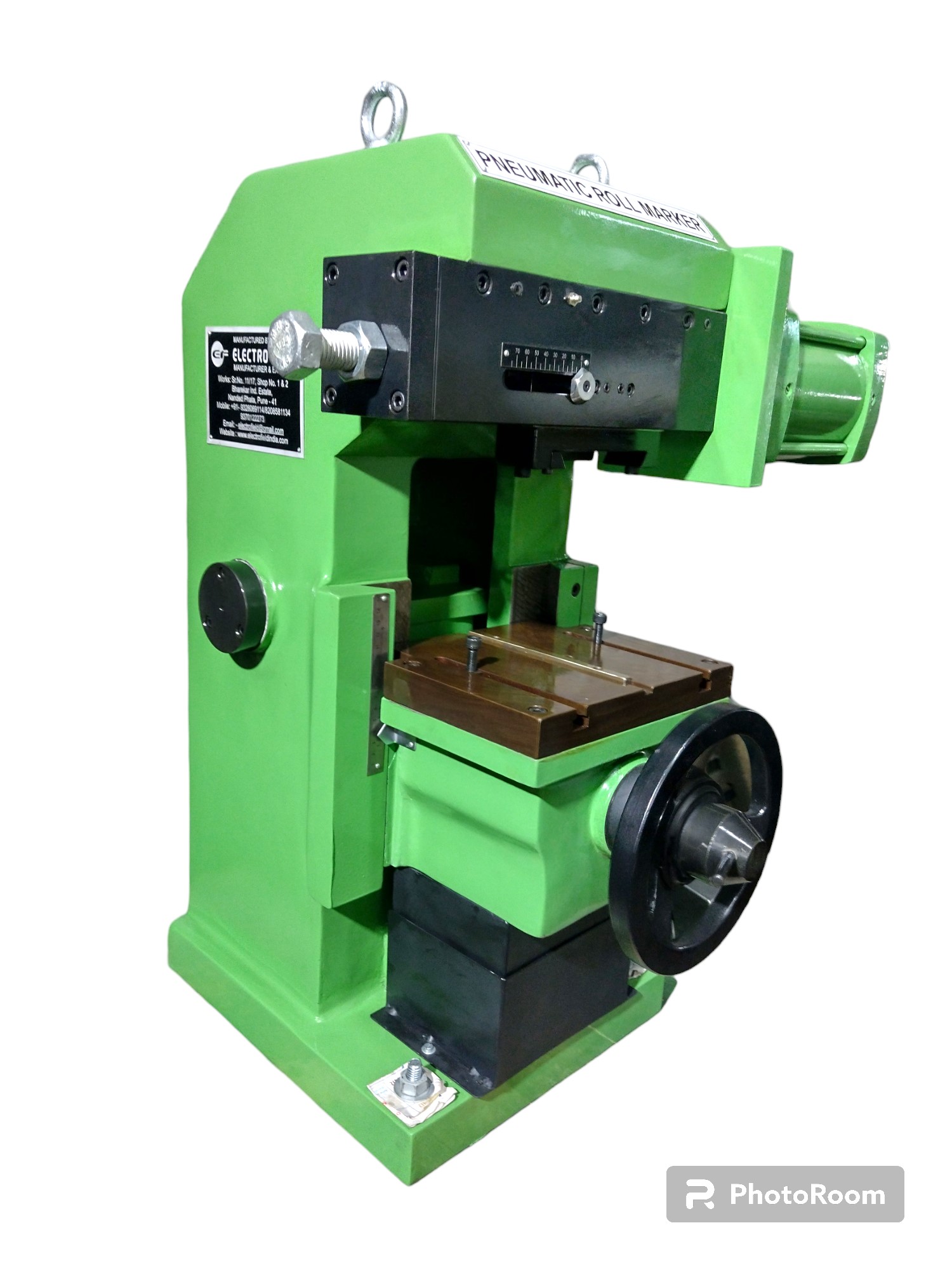

RP 50 PNEUMATIC ROLL MARKING MACHINE

Specification	Details
Marking Capacity	2 Lines of 3 mm Characters
On Mild Steel	1 Line of 4 mm Characters
Table Pressure	1.5 Ton
Daylight	100 mm
Die Slide Stroke	75 mm
Table Rise	8 mm (Pneumatic), 110 mm (Manual)
Table Size	200 × 250 mm
Floor Area	800 × 800 mm
Machine Height	800 mm
Net Weight	500 kg
Pneumatic Pressure	5 kg/cm²
Component Diameter Range	12 mm – 90 mm
Output Capacity	Up to 500 components per hour*
Marking Cycle Time	4–5 Seconds

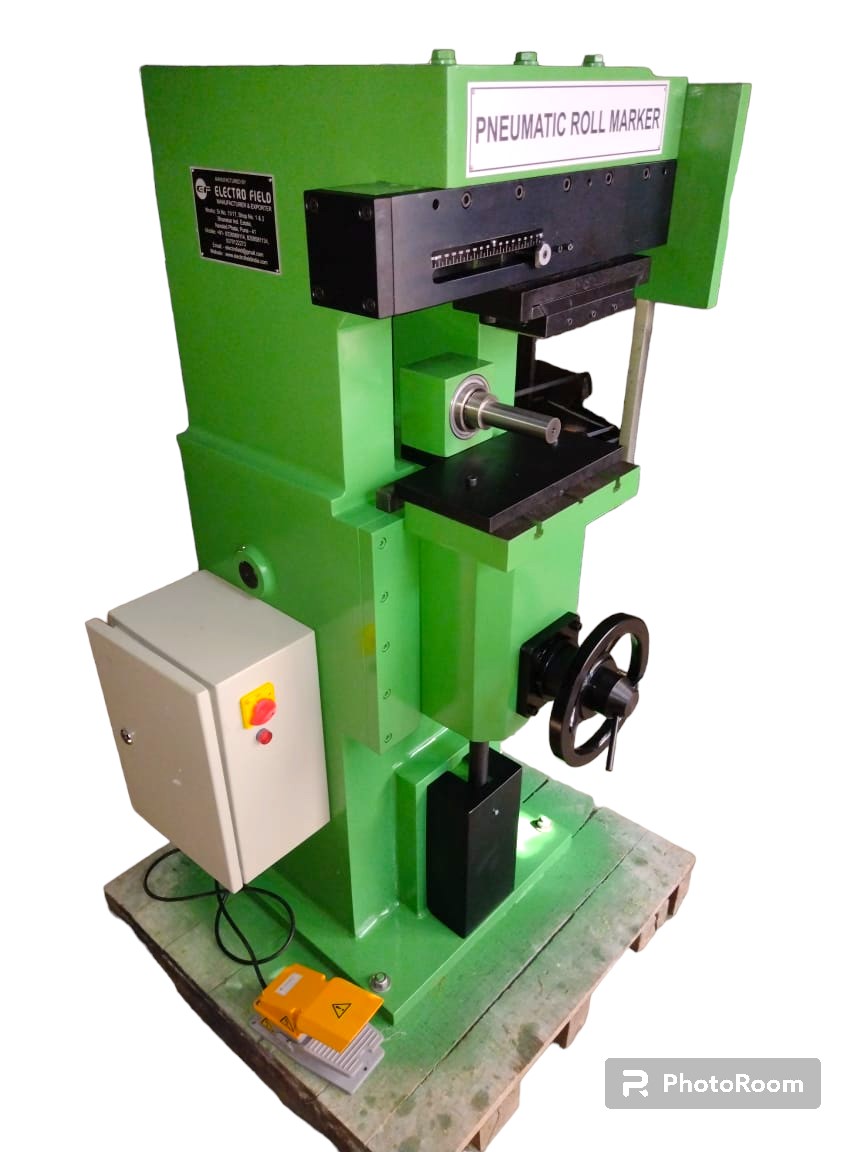

RP 100 PNEUMATIC ROLL MARKING MACHINE

Specification	Details
Marking Capacity	3 Lines of 3 mm Characters
On Mild Steel	2 Lines of 4 mm Characters
Table Pressure	1.5 Ton
Daylight	150 mm (Customizable up to 500 mm)
Throat	90 mm
Die Slide Stroke	100 mm (Customizable up to 150 mm)
Table Rise	8 mm Pneumatic, 110 mm Manual
Table Size	200 × 250 mm
Floor Area	1000 × 1000 mm
Machine Height	1200 mm
Net Weight	700 kg
Pneumatic Pressure	5 kg/cm²
Component Diameter Range	12 mm – 150 mm (Customizable up to 400 mm)
Output	Up to 500 Components per Hour*
Marking Cycle Time	4–5 Seconds

Why Choose Us

Trusted Since 1990

With over 35 years of industry experience, we have been delivering reliable and innovative marking solutions to manufacturers across various industries. Our long-standing expertise has earned us the trust of customers who value quality, precision, and dependable service.

Precision Engineering

Our electronic marking machines are designed to deliver accurate, permanent, and consistent markings, ensuring product traceability and compliance with industry standards.

Superior Quality

Every machine is manufactured using high-quality components and undergoes rigorous quality checks to ensure durability, reliability, and long-term performance in demanding industrial environments.

Wide Industry Expertise

Our marking machines are trusted by businesses in the automotive, engineering, aerospace, electrical, manufacturing, and metal fabrication sectors for their precision and reliability.

Customer-Centric Approach

Customer satisfaction is at the heart of everything we do. From consultation to installation and ongoing support, we are committed to delivering exceptional service and long-term value.
